SRT input

Introduction

The SRT input receives a live video and audio stream over SRT (Secure Reliable Transport) — the broadcast-industry standard for delivering live contribution feeds over IP networks Composer doesn't own. SRT layers packet-loss recovery, retransmission, and accurate timestamping on top of UDP, so a feed survives the kind of packet drop and jitter that would simply collapse an RTMP stream. Reach for SRT whenever the link crosses the public internet, a 4G / 5G uplink, a hotel or venue network, or any other path you can't fully control.

Both connection directions are supported:

Listener mode (mode=listener) — Composer binds locally and waits for a remote encoder to dial in. The most common deployment when a contribution encoder is on the road and Composer is the destination.
Caller mode (mode=caller) — Composer dials a remote SRT source and pulls the stream. Useful when the source lives behind a firewall that doesn't accept inbound, or when pulling from a managed SRT relay.

For the inverse direction — pushing a Composer-rendered scene out over SRT — see the SRT Target. For studio-LAN-only contribution where mDNS auto-discovery and absolute minimum latency matter, the NDI input is a better fit; for managed-network ingestion from legacy encoders, the RTMP input is simpler.

Why SRT for contribution

SRT is purpose-built for live contribution over networks Composer doesn't own. Compared to RTMP it delivers:

Bounded, configurable latency — the receiver waits a fixed latency budget (typically 120–500 ms) for retransmits before delivering the frame, so glass-to-glass delay stays predictable even when the network gets noisy.
Loss recovery that actually works on bumpy links — retransmission and forward-error-correction keep the feed up where RTMP would drop within seconds.
Native AES-128 / AES-256 encryption via a passphrase URL parameter — no TLS terminator or VPN required.
Stream identifiers for multi-tenant / managed-ingest scenarios via the streamid parameter — many cloud SRT ingests require it.

For a stable studio-LAN delivery from a known encoder, RTMP is still simpler. For everything else outside the studio, SRT is the safer bet.

Codec support and hardware decoding

The input handles H.264, HEVC, and AV1 video alongside AAC audio — the codecs SRT contribution chains carry in practice. With a supported NVIDIA GPU, NVDEC (hardware decoding) takes the per-frame cost off the CPU; for codecs the card can't accelerate (or hosts without an NVDEC GPU), the input transparently falls back to multi-threaded software decoding. AV1 NVDEC requires a card with the right silicon — Ada Lovelace / RTX 40-series and newer.

The exact codec / resolution combinations a card can accelerate are documented in NVIDIA's compatibility matrix.

Common use cases

Remote venue uplinks — a stand at a sports venue, a conference, or an outside-broadcast truck pushing a programme feed back to base over a public network or a 4G/5G bond.
Cross-facility point-to-point links — two facilities (or a Composer and a hardware encoder) glued together over the open internet without provisioning dedicated lines.
Cloud-to-studio contribution — pull a feed from a cloud encoder / SRT relay back into Composer for compositing, monitoring, or recompositing into a downstream chain.
Multi-language broadcasts — when the contribution stream carries multiple AAC programs (international + commentary mixes), the audio bus exposes each stream for routing in the Channel Strip Inspector.
Encrypted contribution — when the source side requires AES encryption (rights-managed feeds, sensitive content), the same passphrase is configured here to decrypt incoming traffic.
Backup / dual-uplink ingest — run a primary and a backup SRT input pointing at the same encoder via different paths; the freeze-frame handling keeps the picture live during a brief switchover.

Resilience

Connection management is built in: AutoStart brings the input live when the project loads; AutoRestart re-establishes the listener / caller after errors; SrtBufferLength (Short / Medium / Long) trades latency against jitter tolerance. On signal loss the input optionally holds the last good frame rather than going to black, giving an operator time to react before viewers see the drop. Connection-state, reconnect counter, packet statistics, and a per-input log are surfaced as readable properties for dashboards and the HTTP API.

A small set of configuration templates ships with the input — pick a known-good baseline (typical listener, typical caller, encrypted listener) from the dropdown and the relevant fields populate so you can edit from a working starting point rather than building the URL from scratch.

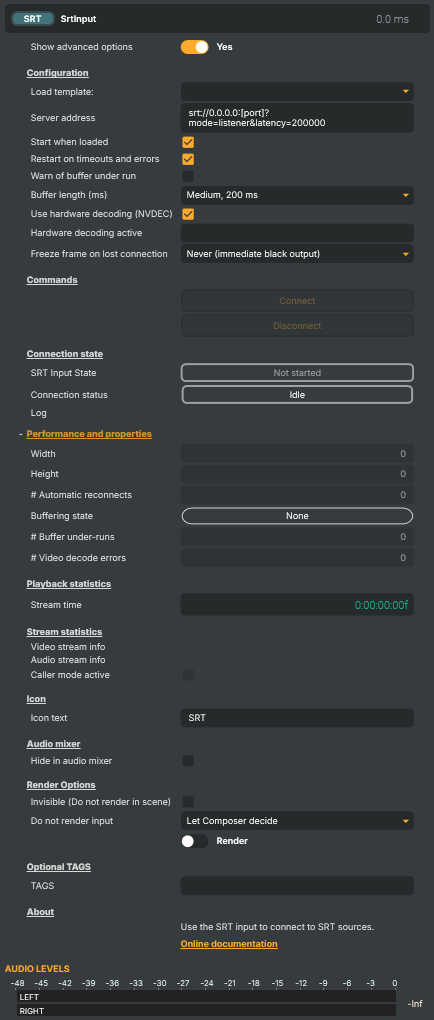

SRT input - Settings

Property	Description
`Show advanced options`	Show or hide the input's advanced settings in the editor UI. [default=false].

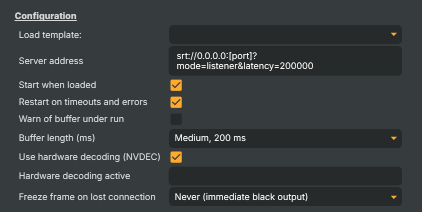

Configuration

Configuration — server URL, decoder, buffer length, and resilience options.

Property	Description
`Load template:`	Pre-built configuration template that fills in `ListenerAddress` for you. `Custom` keeps whatever you've typed. The other choices set `ListenerAddress` to a ready-made local-loopback URL — `Localhost9000caller` for connecting out to a source on localhost:9000, `Localhost9000listener` for receiving a push to localhost:9000.
`Server address`	SRT URL the input connects to or listens on. [default=local listener on any interface]. A full SRT URL such as `srt://host:port?mode=caller&latency=200000` (reach out to a remote source) or `srt://0.0.0.0:port?mode=listener&latency=200000` (wait for a remote encoder to push the stream into Composer). Supports the standard SRT query parameters — `mode`, `latency`, `passphrase`, `streamid`, etc. — directly in the URL. The macro `@@LocalIP()` can be used in place of an IP address and will be substituted with the host machine's local IP address at connect time. Useful for portable project files that should work on any machine without manual IP edits — for example `srt://@@LocalIP():9000?mode=caller&latency=200000`.
`Start when loaded`	Whether the input starts as soon as the project loads. [default=true]. When true, the input invokes its start logic immediately on load (equivalent to running `StartListenerCommand`). Disable to require an explicit start, useful when the source should only come live on operator action or via a script trigger.
`Restart on timeouts and errors`	Whether the input automatically restarts after a timeout or error. [default=true]. When true, the input keeps trying to recover when the connection drops, the source times out, or a recoverable error occurs. Useful for long-running productions where the source may briefly drop. Disable for one-shot connects that should not auto-recover.
`Warn of buffer under run`	Whether to log a warning when the video or audio buffer drains to zero. [default=false]. Buffer under-runs typically cause visible stalls or audible drop-outs, so flagging them in the log helps diagnose network or pacing issues. Disable to keep the log quieter when occasional drains are expected.
`Buffer length (ms)`	(advanced) How much video and audio is buffered ahead of playback. [default=Medium]. Choose between `Short`, `Medium`, and `Long`. A longer buffer absorbs more network jitter and keeps playback steady on bumpy links, at the cost of more added latency. A shorter buffer is tighter on latency but more sensitive to network hiccups.
`Use hardware decoding (NVDEC)`	Use hardware-accelerated decoding (NVDEC) when the incoming codec supports it. [default=true]. When true, video decoding runs on dedicated NVIDIA decoder silicon, freeing the CPU and typically allowing more concurrent video inputs at higher resolutions. Falls back to software decoding for codecs the card can't accelerate. See `HardwareDecodingUsed` to confirm which path was actually selected.
`Hardware decoding active`	Which decoder is currently active for the incoming stream (read-only). Reflects whether NVDEC (hardware) or a software decoder is in use. Useful from a script to confirm hardware decoding actually engaged for the incoming codec, since `UseHardwareDecoding` is a preference and the actual path depends on what the card supports.
`Freeze frame on lost connection`	What to show on screen when the SRT connection is lost. Choose how the input behaves while it has no source — for example freezing on the last good frame for a configurable time, or going to black immediately. Useful for choosing between a graceful "hold on screen" look and an obvious "we lost the source" indicator.

Commands

Commands — start and stop the SRT input.

Property	Description
`Connect`	Start the SRT input.
`Disconnect`	Stop the SRT input.

Connection state

Connection state — overall input state and the underlying SRT socket status, plus the recent log.

Property	Description
`SRT Input State`	Overall state of the SRT input (read-only). High-level state combining the connection status and buffering — typically `NotStarted`, `Starting`, `Running`, `Stopping`, or an error variant. Driven indirectly by `StartListenerCommand` / `StopListenerCommand` and `AutoStart` at load time. Read this from a script to decide whether the stream is live; it also drives the running indicator and the enabled state of the start/stop buttons.
`Connection status`	(advanced) Detailed connection state of the underlying SRT socket (read-only). Reflects the low-level listener/caller status — for example whether the socket is listening, connecting, connected, stopping, or closed. Most scripts can use the higher-level `SrtInputStreamState` instead; this is mainly useful for detailed troubleshooting.
`Log`	Recent log lines from the input — connect, disconnect, restart, and error events (read-only). A short history of the most recent SRT events, useful for diagnosing why a connection failed or why the input restarted.

Performance and properties

Performance and properties — runtime stats from the live SRT stream.

Property	Description
`Width`	Width of the video frames currently being received, in pixels (read-only).
`Height`	Height of the video frames currently being received, in pixels (read-only).
`# Automatic reconnects`	Total number of automatic reconnects performed since the input was started (read-only). A rapidly growing counter is a strong signal that the network path or source is unstable. Resets only on full input dispose / re-create.
`Buffering state`	(advanced) Whether the input is currently filling its receive buffer (read-only). `Buffering` means the input is waiting for enough data before it starts producing frames; `Streaming` means it's running normally. Sustained buffering states indicate the network can't keep up with the configured `SrtBufferLength`.
`# Buffer under-runs`	Number of times the video or audio buffer drained to zero (read-only). Each occurrence typically lines up with a visible stall or audible drop-out. A growing counter is a strong signal the network can't keep up with the configured `SrtBufferLength`.
`# Video decode errors`	(advanced) Total number of video decode errors observed since the input was started (read-only). Should stay at 0 during healthy reception. Non-zero values indicate corrupted packets, codec mismatches, or other decode-time problems.

Playback statistics

Playback statistics — per-frame timestamps and stream-time diagnostics.

Property	Description
`Stream time`	Time elapsed since the stream started, as a time code (read-only). Counts up from 0:00:00:00 when the connection becomes live and resets on each new connection. Useful for displaying the stream's running duration.

Stream statistics

Stream statistics — metadata about the incoming video and audio streams.

Property	Description
`Video stream info`	(advanced) Metadata about the incoming video stream (read-only). A dictionary with technical details about the video — codec, resolution, frame rate, bit rate, and so on. Available once the source has been negotiated.
`Audio stream info`	(advanced) Metadata about the incoming audio stream (read-only). A dictionary with technical details about the audio — codec, sample rate, channel count, bit rate, and so on. Available once the source has been negotiated.
`Caller mode active`	(advanced) Whether the input is currently running in SRT caller mode (read-only). True when `ListenerAddress` is configured with `mode=caller` (Composer reaches out to a remote SRT source). False when in `mode=listener` (Composer waits for a remote encoder to push the stream in).

Inherits from: AbstractInput, AbstractAudioProcessing, AbstractAudioMetering.

Shared input properties

Every input — regardless of source type — exposes the following property groups. They are surfaced in the property panel only when Show advanced options is enabled on the input.

Icon

Icon text — short text shown on the input's icon in the Inputs list. Useful as a quick visual label (channel number, mic name, camera position) to tell otherwise-similar inputs apart at a glance. Empty by default; has no effect on rendering or routing.

Audio mixer

Hide in audio mixer — when on, hides the input from the audio mixer view without disabling its audio. Useful for de-cluttering the mixer while keeping the audio routed (e.g. fixed background music, ambient beds, pre-aligned playout). [default=false]

Render Options

Invisible (Do not render in scene) — when on, the input is skipped during rendering and produces no picture on any layer or scene. Audio routing is unaffected. Toggle from a script for cued-in / cued-out behaviour during a show. [default=false]
Do not render input — disables the input's internal render entirely (no decode or capture work is done). Stronger than Invisible: that one renders but doesn't display; this one stops the input from doing any work at all. Useful for reducing CPU / network load on heavy sources (e.g. high-bitrate RTMP / SRT streams, large media files) when the input is temporarily not needed. Audio meters are cleared while disabled. [default=false]
Do not render input controller — chooses what drives the Do not render input flag. Let Composer decide (the default) hands control to the project-level Render Tuning optimiser, which automatically pauses inputs that aren't used by any active scene. Manual Configuration ignores Render Tuning and lets the Do not render input toggle control the flag directly — use this to keep a network source warm even when it's currently off-air, or to take a heavy input down by hand regardless of scene activity. [default=Let Composer decide]

Optional TAGS

TAGS — one or more free-form tag words used to classify this input (typically space- or comma-separated). Picked up by Composer's Smart Search to filter or find inputs by category — e.g. camera, music, interview, sponsor. Has no effect on rendering.

Audio configuration and processing options

For inputs capable of processing audio, additional audio configuration and processing options are available through the audio mixer and the Channel Strip Inspector.

Audio mixer — monitor levels, adjust gain and pan, mute / solo inputs, and configure auxiliary sends to Audio Channel Strip submix buses, all from a centralised mixer-style interface.
Channel Strip Inspector — advanced per-strip audio processing for the selected input:
- Input trim, stereo remapping, and audio delay
- Channel mapping (8-channel mode unlocks the full MAPPING tab)
- Gate
- Low-cut filter
- Equaliser (5-band parametric)
- Compressor
- Sidechain ducking (a second compressor whose gain reduction is driven by another input's level — e.g. dipping music under a voice-over)
- Limiter

For the full audio signal flow, see Audio processing workflow.
