Gain

Adjusts the level of the audio signal independently per channel and remaps the stereo channels. Useful for boosting or attenuating audio, swapping left and right, summing stereo to mono, or duplicating one channel onto both sides. Includes a signal-overload indicator that flags when the gain pushes the signal past full scale.

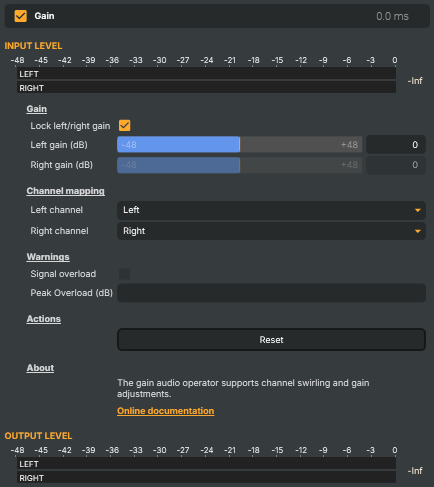

Gain - Settings

Gain

Gain — per-channel level controls.

Property	Description
`Lock left/right gain`	Whether the left and right gains are linked together. [default=true]. When true, changing `LeftGainDb` automatically applies the same value to `RightGainDb` — handy when adjusting overall stereo level. Disable to set the two channels independently, useful for fixing channel imbalance.
`Left gain (dB)`	Gain applied to the left output channel, in decibels. [min=-48, max=48, default=0]. 0 leaves the channel unchanged. Negative values reduce the level; positive values boost it (watch out for `SignalOverLoad`). When `LockChannelGain` is true, setting this also updates `RightGainDb`.
`Right gain (dB)`	Gain applied to the right output channel, in decibels. [min=-48, max=48, default=0]. Locked to `LeftGainDb` when `LockChannelGain` is true; freely settable otherwise.

Channel mapping

Channel mapping — choose which input channel feeds each output channel.

Property	Description
`Left channel`	Which input channel feeds the left output. [default=Left]. `Left` passes the original left channel through. `Right` copies the right channel to the left output. Combined with `RightChannelRemap` to swap or duplicate channels.
`Right channel`	Which input channel feeds the right output. [default=Right]. `Right` passes the original right channel through. `Left` copies the left channel to the right output. Set both this and `LeftChannelRemap` to `Left` (or both to `Right`) to mono-fold to a single source channel.

Warnings

Warnings — clip indicators that flag when the signal is too loud.

Property	Description
`Signal overload`	True when the gain stage's output signal has clipped (read-only). Lights up when boosting either channel pushes the signal above full scale. Auto-resets after 2 seconds. Reduce `LeftGainDb` / `RightGainDb` if this trips.
`Peak Overload (dB)`	Highest level reached during the most recent overload, in decibels (read-only). Updated whenever `SignalOverLoad` trips, and auto-resets after 2 seconds.

Actions

Actions — one-click commands.

Property	Description
`Reset`	Reset all settings to their defaults — both channels at 0 dB and the standard L→L / R→R mapping.

Inherits from: AbstractAudioOperator, AbstractOperator, AbstractAudioMetering.
