Histogram

Analyses the colour and brightness distribution of the image and reports whether enough pixels fall inside a chosen colour range. Useful for monitoring exposure on a live feed, detecting when a known team colour or sponsor branding appears on screen, triggering automation when a colour signal (a flag, a light, a vest) is shown to the camera, or recording the dominant hue/saturation of footage for editorial purposes. Define a hue/saturation/value window, set how much of the area must qualify, and use the Qualified flags to drive scripts.

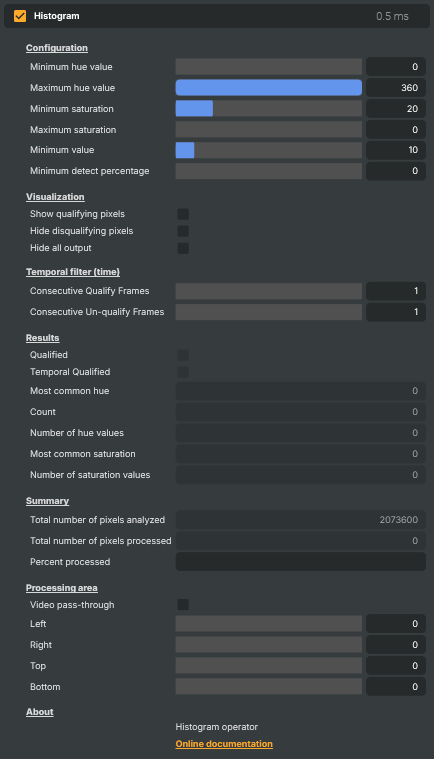

Histogram - Settings

Configuration

Configuration — define which colours and brightnesses count as qualifying pixels.

Property	Description
`Minimum hue value`	Lowest hue (in degrees) that counts as a qualifying colour. [min=0, max=360, default=0]. Hue runs around the colour wheel: 0=red, 60=yellow, 120=green, 180=cyan, 240=blue, 300=magenta. Combine with `ConfigurationHueValueMax` to pick a slice of the wheel.
`Maximum hue value`	Highest hue (in degrees) that counts as a qualifying colour. [min=0, max=360, default=360]. Set the same as `ConfigurationHueValueMin` for an exact hue match, or widen the range to accept variations.
`Minimum saturation`	Minimum colour saturation (%). [min=0, max=100, default=20]. Pixels less saturated than this are ignored. Raise this to exclude near-grey pixels and only react to vivid colours.
`Maximum saturation`	Maximum colour saturation (%). [min=0, max=100, default=0]. 0 disables the upper limit. Use to exclude over-saturated pixels.
`Minimum value`	Minimum brightness (value, %) of qualifying pixels. [min=0, max=100, default=10]. Pixels darker than this are ignored. Raise this to exclude shadows and only react to well-lit colour.
`Minimum detect percentage`	Percentage of the area that must qualify before `Qualified` becomes true. [min=0, max=100, default=0]. 0 means any single matching pixel qualifies the frame. Raise this to ignore tiny patches and only fire on substantial coverage (for example, a flag filling a sizeable part of the frame).

Visualization

Visualization — control how qualifying and non-qualifying pixels appear in the output image.

Property	Description
`Show qualifying pixels`	Tint qualifying pixels in the output so they stand out. [default=false]. Useful while dialing in the colour range. Turn off in production unless the visualisation is part of the show.
`Hide disqualifying pixels`	Hide pixels that do not qualify, leaving only the matching colour visible. [default=false]. Combine with Show qualifying pixels for a clear "matched-only" look.
`Hide all output`	Hide all visual output and use the operator only as a measurement. [default=false]. The Qualified properties are still updated. Use this when the histogram is just a trigger and shouldn't change the picture.

Temporal filter (time)

Temporal filter — require qualification across several frames to avoid flicker.

Property	Description
`Consecutive Qualify Frames`	Number of consecutive frames the colour must qualify before `TemporalQualified` becomes true. [min=1, max=30, default=1]. Higher values smooth out single-frame glitches but delay the trigger. 1 means react immediately.
`Consecutive Un-qualify Frames`	Number of consecutive frames without a match before `TemporalQualified` resets to false. [min=1, max=30, default=1]. Higher values keep the trigger high through brief drop-outs.

Results

Results — read-only outputs reporting what was found in the most recent frame.

Property	Description
`Qualified`	True when the current frame matches the configured colour (read-only). Reflects the raw, instantaneous match. Use `TemporalQualified` for a debounced version.
`Temporal Qualified`	True after enough consecutive frames have qualified (read-only). The recommended trigger for scripts — debounced via `ConfigurationMinFramesToQualify`/`ConfigurationMinFramesToNotQualify`.
`Most common hue`	Hue (degrees) that appears most often in the analysed area (read-only).
`Count`	How many pixels share the most common hue (read-only).
`Number of hue values`	Number of distinct hue values present (read-only). A low number suggests a flat colour palette; a high number suggests a busy/varied image.
`Most common saturation`	Saturation level that appears most often, 0–255 (read-only).
`Number of saturation values`	Number of distinct saturation values present (read-only).

Summary

Summary — overall pixel counts for the analysed area.

Property	Description
`Total number of pixels analyzed`	Total number of pixels considered, before colour filtering (read-only).
`Total number of pixels processed`	Number of pixels that matched the configured colour rules (read-only).
`Percent processed`	Matching pixels as a percentage of the analysed area, formatted as text (read-only).

Processing area

Processing area — choose which part of the image is analysed.

Property	Description
`Video pass-through`	Output the original picture untouched while still analysing it. [default=false]. Useful when the histogram is purely a measurement and the visualization options would interfere with the show.
`Left`	Pixels to ignore from the left of the image. [min=0, max=4096, default=0]. Use to limit analysis to a region of interest, for example excluding lower-thirds, scoreboards or letterbox bars.
`Right`	Pixels to ignore from the right of the image. [min=0, max=4096, default=0].
`Top`	Pixels to ignore from the top of the image. [min=0, max=4096, default=0].
`Bottom`	Pixels to ignore from the bottom of the image. [min=0, max=4096, default=0].

Inherits from: AbstractOperator, AbstractAudioMetering.
