Alignment Grid

Draws a configurable grid or crosshair overlay on top of the layer. Useful for composing shots, lining up graphics or lower-thirds against safe areas, checking that text is on a baseline, and verifying that on-air elements are placed consistently across scenes. Has no effect on the rendered output once disabled or set to a fully transparent opacity.

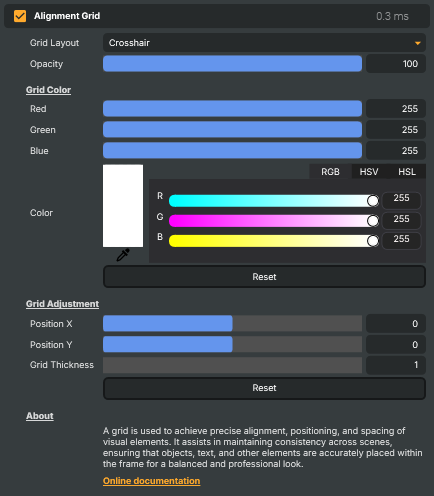

Alignment Grid - Settings

Property	Description
`Grid Layout`	Which overlay pattern to draw. [default=Crosshair]. `Crosshair` draws a single pair of centre lines — minimal but enough to confirm dead-centre placement. `Grid4x4` and `Grid8x8` lay out an evenly spaced grid for more detailed layout work.
`Opacity`	Transparency of the grid overlay, 0–100. [default=100]. 0 hides the grid; 100 makes it fully opaque. Lower values let the underlying image show through — useful when you want the grid as a faint reference rather than a dominant element on screen.

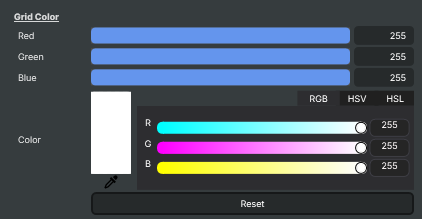

Grid Color

Grid Color — colour of the overlay lines.

Property	Description
`Color`	Combined colour picker for the grid lines. Convenience UI wrapper around `ColorR`, `ColorG`, and `ColorB`. Default is white, which gives the highest contrast against most footage.
`Reset`	Reset the grid colour and opacity to their defaults (white, fully opaque).

Grid Adjustment

Grid Adjustment — fine-tune position and line thickness.

Property	Description
`Position X`	Horizontal offset of the grid centre, in pixels. [min=-1920, max=1920, default=0]. 0 keeps the grid centred on the layer. Positive shifts right, negative shifts left. Useful when matching a grid to a non-centred element in the composition.
`Position Y`	Vertical offset of the grid centre, in pixels. [min=-1080, max=1080, default=0]. 0 keeps the grid centred. Positive shifts down, negative shifts up.
`Grid Thickness`	Width of the grid lines, in pixels. [min=1, max=10, default=1]. 1 draws hairline reference lines that don't dominate the picture; higher values give a more visible grid that's easier to read on busy footage.
`Reset`	Reset position and thickness to their defaults (centred, 1 px thick).

Inherits from: AbstractOperator, AbstractAudioMetering.
